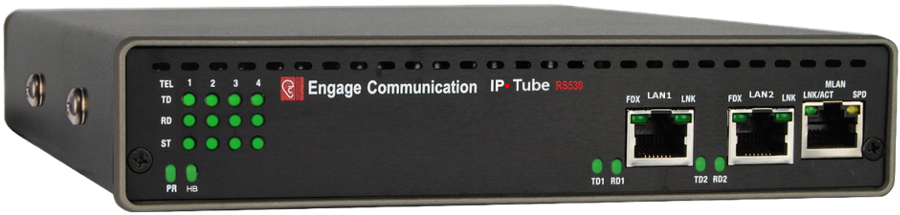

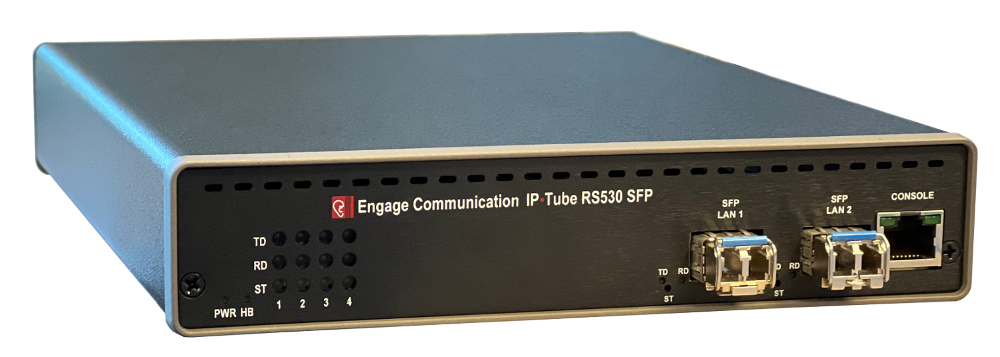

IP-Tube SER RS530
IP•Tube RS530 SER

RS530 Circuit Extension Over Ethernet, HDLC Over IP

• Dual LAN Interfaces
• Assured Delivery Protocol
• RS530 Over IP Protocol
• Service Quality Packet Prioritizing

Image is not available
SIZE
9" (L) x 7.3” (W) x 1.5” (H)
Rack Mount and Power Options
Image is not available

Rack Mount and Power Supply Options

Serial 4 Port Back Panel VDC
Image is not available

Rear Panel: 4-Port with 12/30 VDC Adapter Power (option)

Serial 2 Port Back Panel VDC
Image is not available

Rear Panel: 2-Port with 12/30 VDC Adapter Power (option)

Serial 2 Port Back Panel -48
Image is not available

Rear Panel: 2-Port with Negative 48VDC Adapter Power (option)

previous arrow
previous arrow
next arrow
next arrow

IP•Tube RS530 SER

RS530 Circuit Extension Over Ethernet, HDLC Over IP

IP•Tube SER RS232

RS530 Circuit Extension Over Ethernet, HDLC Over IP

- Dual LAN Interfaces -
- Assured Delivery Protocol -
- RS530 Over IP Protocol -
- Service Quality Packet Prioritizing -

Product Image

SIZE

9" (L) x 7.3” (W) x 1.50” (H)

Overview

Flexible Serial Data Extensions over Packet Switch Networks

The IPTube SER RS530 converts RS530 data connections, which employ leased circuits, into IP packets that extend the circuit over very cost effective Ethernet based LAN/WAN/MAN wired and wireless networks. The IPTube SER RS530 encapsulates Synchronous and HDLC serial data into IP packets. The IPTube SER RS530 is available with one to four RS530 interfaces, configured as DCE or DTE, that facilitate the interconnection of Serial Data Over IP between Bulk Encryptors (KIV7/OMNI), Data Terminals, Data Acquisition Systems, WAN Routers and Bridges....

Layer 1

In Layer 1 operating mode every bit is encapsulated into an IP packet. The size and frequency of the IP packets can be set with data bit rates from 2.4 Kilobits to 2.048 Megabits per second. Latency minimization is accomplished with multidimensional adaptive clock configurations. A configured number of incoming packets are buffered in order to compensate for the packet delivery jitter introduced by the network. The size of this buffer needs to accommodate the peak amount of jitter.

HDLC Over IP

In Layer 2 operating mode HDLC Data frames, such as those used by Wide Area Networking protocols PPP and Frame Relay or proprietary Data Links, are transported within IP packets as HDLC over IP. The latency introduced is dependent upon the clocking rate and the HDLC frame size. Minimum latency is obtained by maximizing the clock rate and minimizing the MTU. HDLC Over IP frames are directly sent out the Serial interface since Clock synchronization is not required. WAN security provisioning, such as firewalling, is maintained.

IP•Tube SER RS530 Standard Features

Dual LAN Interfaces

All IPTube SER RS530 models ship with dual 10/100BaseT Ethernet LAN ports. The dual Ethernet interfaces provide for:

  • Management interface on LAN port 2 when LAN port 1 is connected to a VPN tunnel
  • The LAN ports can be configured to support connections over 2 Asymmetrical bandwidth links
  • Alternator Option for load balanced SDSL interconnects
  • Protector Option for Redundant Packet Path connections with Constant or Switch Over Criteria

Assured Delivery Protocol

In order to assure high quality communications over links with intermittent or noisy performance, such as Wireless or Broadband over Power Line, the IPTube SER RS530 employs Engage’s robust Assured Delivery Protocol with the following benefits:

  • Packet out of sequence detection and re-sequencing
  • Duplicate skipping,
  • Lost packet retransmissions with configured delay.

Flexible Synchronous Serial Data Extension Over IP

The IP•Tube SER RS530, whose synchronous serial interface is configurable as DCE or a DTE, facilitates the transport of bulk data across a combination of IP and WAN infrastructures. The IP•Tube SER RS530's flexibility supports internetworking across varied LAN/WAN/MAN/Satellite networks. The size and frequency of the IP packets can be set with data bit rates from 2.4 Kilobits per second to 2.048 Megabits per second. Latency minimization is accomplished with multidimensional adaptive clock configurations.

WAN Data Over IP

The IPTube SER RS530 provides a transparent bandwidth regulated IP Tunnel for interconnecting remote Networks. With the IPTube SER RS530 WAN security provisioning, such as firewalling, is maintained. WAN Protocols, such as PPP and Frame Relay, that utilize HDLC framing are encapsulated with HDLC Over IP. Broadband Service providers are able to transport Enterprise Wide Area Network connections with inband management of the Committed Information Rates. The IPTube SER RS530 IP Tunnel can also be utilized as a secondary path for fault tolerant mission critical applications.

Assured Delivery Protocol

In order to assure that circuits are extended over connections with fault tolerance the IPTube SER RS530 has as a standard capability an Assured Delivery Protocol that supports high performance full duplex real time data. The protocol has packet out of sequence detection and re sequencing, duplicate skipping, and real time lost packet retransmission with configured delay.

Service Quality Packet Prioritizing

The IPTube SER RS530 uses the Type of Service byte in the IP packets to prioritize the encapsulated data. The setting of the TOS byte can be used to ensure that the data from the IPTube RS530DL is ensured high priority.

Management

Management of the IPTube SER RS530 is accomplished with a Command Line Interface that is accessed through a Console or Telnet connection. Templates of the most common configuration provide for an Edit and Paste configuration. SNMP MIB I and II support is a standard feature.

Dual LAN Interfaces

All IPTube SER RS530 models ship with dual 10/100BaseT Ethernet LAN ports. The dual Ethernet interfaces provide for:

  • Management interface on LAN port 2 when LAN port 1 is connected to a VPN tunnel
  • The LAN ports can be configured to support connections over 2 opposite ADSL links
  • Protector Option for Redundant Packet Path connections with Constant or Switch Over Criteria

VPN Network Management

The IPTube SER RS530's second 10/100BaseT Ethernet interface provides a management port when interconnecting the IPTube SER RS530 through a Virtual Private Network. Each LAN interface of the IPTube SER RS530 features independent IP network configurations.

Protector Option

The protector option utilizes the second LAN interface as a redundant path for the interconnection of the IP encapsulated Synchronous Serial data. The extension of the RS530 circuit has a fault tolerant link that is configured to always on, or with switch over criteria.

Applications

IP•Tube SER RS530 for Serial Data Over IP/Ethernet Connections

The "Purpose Built" Engage IPTube SER RS530 encapsulates synchronous or HDLC serial data from Data Terminal or Data Communication Equipment such as Bulk Encryptors (KIV7/OMNI), Terminal Servers, Modems, Video Codecs, WAN Routers into IP packets. The IP connection provides for the transparent interconnection of Data Terminal/Communication Equipment via LANs, WANs, MANs, Satellite and Wireless Ethernet. The size and frequency of the IP packets can be set to bit rates from 2.4 Kilobits per second to 2.048 Megabits per second with N times 2.4K, 56K and 64K clocking.

Flexible RS530 Serial Data Extensions over IP

The IPTube SER RS530  facilitates the transport of bulk data across a combination of IP and TDM WAN infrastructures. The IPTube SER RS530 are deployed flexibly to support internetworking across varied LAN/WAN/MAN networks.

WAN Data Over IP

IPTube SER RS530 provides a transparent bandwidth regulated IP Tunnel for interconnecting remote Networks. WAN Protocols, such as PPP and Frame Relay, that utilize HDLC framing are encapsulated with HDLC Over IP. Broadband Service providers are able to transport Enterprise Wide Area Network connections with inband management of the Committed Information Rates. The IPTube SER RS530's IP Tunnel can also be utilized as a secondary path for fault tolerant mission critical applications.

Specifications

LAN Network Interface
  • Two 10/100BaseT Full/Half Ethernet
LAN Network Protocols Supported
  • IP, TCP, UDP, ICMP, Telnet, DHCP, DDNS, SSH
RS530 Interfaces
  • 1-4 Sync/HDLC/Async, DCE/DTE RS530: 1 to 2 DB25M; DB60F connector supports 1 to 2 RS530s with DB25M adaptor cables
  • DTR Controllable Transmission
  • CD Reception Indicator
RS530 Interface Clocking
  • Synchronous : 2.4k Kilobits to 2.048 Megabits per seconds
  • Optional 4, 8 and 16 Megabit Model
RS530 Over IP Protocol
  • TDM Over IP
  • Circuit Extension Services Over IP
  • HDLC Over IP
WAN Network Protocols Supported
  • HDLC, SDLC, PPP, Frame Relay
Regulatory
  • CE
  • Safety -IEC60950
  • EMC - CFR 47 Part 15 Sub Part B:2002, EN55022: 1994 + A1 & A2, EN55024, ICES-003 1997, CISPR 22 Level A
Management
  • Secure Socket Shell - SSH
  • Telnet support with Edit and Paste Template Files
  • Console Port for Out of Band Management
  • SNMP Public and Private MIB support with configured traps
Quality of Service Support
  • IP Type of Service (TOS) CLI configurable
  • IANA Registered UDP Port 3175
  • 802.1p/q mac level prioritization
TFTP Online Upgrade Capable (FLASH ROMs)
  • IPTube is fully operational during upgrade
Environmental
  • 0° to 132° F (-10° to 50°C ) operating temperature
  • Up to 90% operating humidity (non-condensing)
  • Optional Extended Temperature Range available
Dimensions
  • Dimensions: 9" (L) x 7.3” (W) x 1.50” (H)
Power
  • 12-30 VDC, 1.0A.
  • Screw Locking Connector
  • Universal Adapter 100/240 VAC 50/60 Hz
  • Optional -48V 0.25 Amp
  • Hot Standby

Ordering Information

Chassis Slot Card: IP-Tube SER RS530

Rack Mount & Power Supply Options:

BlackGate RS232 Rear
BlackGate RS232 Rear

Part No.

Description

04S-0530-0x*

IP•Tube SER RS530-DCE/DTE, *Note x = specified # of RS530 Ports Enabled (2 or 4)

CH-04S-0530-0x*

Chassis Card IP•Tube SER RS530-DCE/DTE, *Note x = specified # of RS530 Ports Enabled (2 or 4)

U4S-0530-0x*

IP•Tube SER RS530 Port Upgrade, Enable up to 4 additional RS530 Ports

Optional Features

Optional Features

ROHS

ROHS compliant materials and processes, Restriction of Hazardous Substances no Pb

ALT

Alternator Option, Load Balancing Inverse Mux

PRO

Protector Option, Fault Tolerant Network Interconnect. The protector option utilizes the second LAN interface as a redundant path for the interconnection of the IP encapsulated data. The extension of the IP-Tube has a fault tolerant link that is configured to always on, or with switch over criteria.  Learn more.

Power Supply Options

Power Supply Options

094-2418

90-220 VAC Universal International/Domestic Adapter

094-2418-R

DUAL REDUNDANT, 90-220 VAC Adapter

094-N48V

Internal Power Module, -48 VDC Screw Terminals

094-N48V-02

DUAL REDUNDANT, -48 VDC Screw Terminals

094-1500

WIREDC Option, +24 VDC Screw Terminals

094-WIREDC-R

DUAL REDUNDANT, +24VDC

Rack Mount Options

Rack Mount Option

095-1000

Rack Mount Kit - for single 7" products (Fits both 19" and 23" racks)

095-2000

2 unit 19" x 1RU Rack Mount Kit for 7" products

094-WIREDC-R

DUAL REDUNDANT, +24VDC

095-3000-RTANG

Right Angle Wall Mount Bracket Kit
